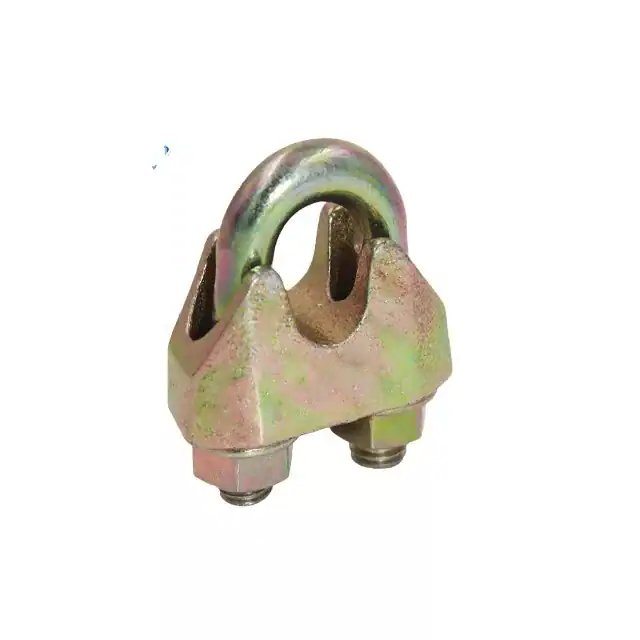

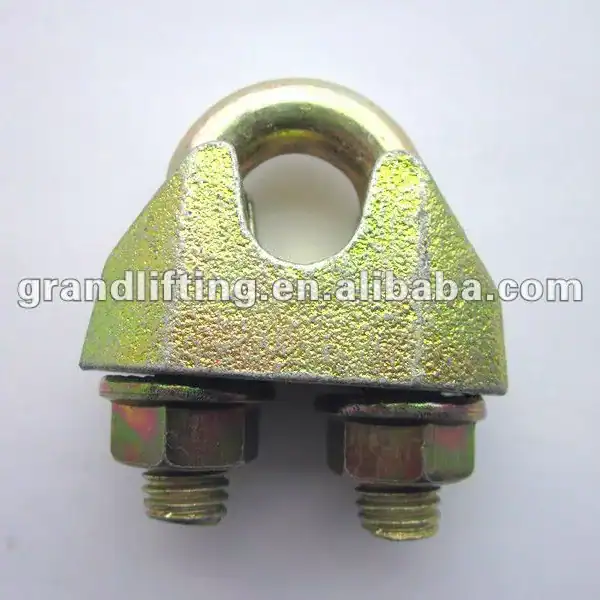

Malleable Wire Rope Clip Rigging Hardware
Description
| ITEM NO | SIZE | E | A | L | C | D | H | G |
| mm | mm | mm | mm | mm | mm | mm | mm | |
| ZHDIN1142-1 | 5 | 12 | 25 | 25 | 13 | 5 | 13 | 13 |
| ZHDIN1142-2 | 6.5 | 14 | 30 | 32 | 16 | 6 | 14 | 17 |
| ZHDIN1142-3 | 8 | 18 | 39 | 41 | 20 | 8 | 18 | 20 |
| ZHDIN1142-4 | 10 | 20 | 40 | 46 | 20 | 8 | 21 | 24 |
| ZHDIN1142-5 | 12 | 24 | 50 | 56 | 24 | 10 | 25 | 28 |
| ZHDIN1142-6 | 13 | 27 | 55 | 64 | 28 | 12 | 29 | 30 |
| ZHDIN1142-7 | 14 | 28 | 59 | 66 | 28 | 12 | 30 | 31 |
| ZHDIN1142-8 | 16 | 32 | 64 | 76 | 32 | 14 | 35 | 35 |
| ZHDIN1142-9 | 19 | 36 | 68 | 83 | 32 | 14 | 40 | 36 |
| ZHDIN1142-10 | 22 | 40 | 74 | 96 | 34 | 16 | 44 | 40 |
| ZHDIN1142-11 | 26 | 46 | 84 | 111 | 38 | 20 | 51 | 50 |
| ZHDIN1142-12 | 30 | 54 | 95 | 127 | 41 | 20 | 59 | 55 |
| ZHDIN1142-13 | 34 | 60 | 105 | 141 | 45 | 22 | 67 | 60 |
| ZHDIN1142-14 | 40 | 68 | 117 | 159 | 49 | 24 | 77 | 65 |
1) surface: electric galvanizing, self colour
2) handicraft: casting
3) size: M5-M40
4)a large stock of wire rope clip
