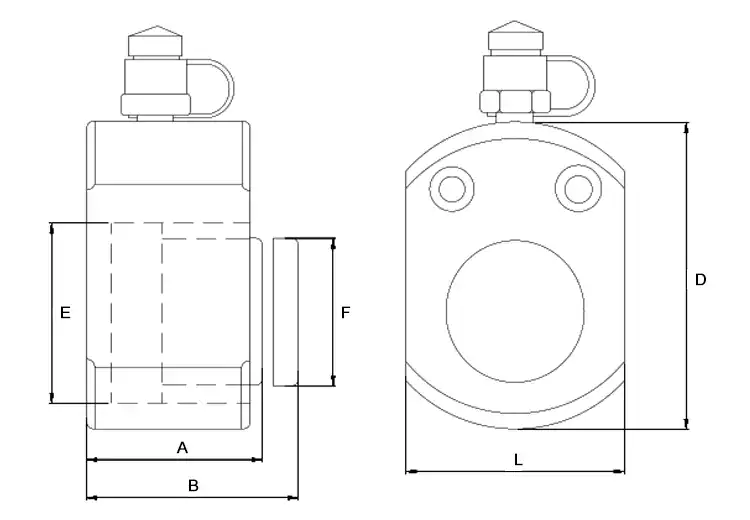

Multi-stage Hydraulic Cylinder Jack

A Light weight low profile design for use in confined spaces.
Baked enamel finish for Increased corrosion resistance.
Plunger wiper reduces contamination, Extending Cylinder life.
It is easy to carry .there are two holes on the surface of the oil vat for stability.

Item No.		HC0401	HC0402	HC0403	HC0404	HC0405
Capacity	（t）	10	20	30	50	100
Stroke	(mm)	26	28	56	69	72
Oil Capacity	(cc)	24	46	112	151	329
Closed Height	(mm)	48	56	62	71	88
G.W.	(kg)	1.4	2.5	4.1	6.4	14.5
Volume	(mm)	150X65X50	165X85X60	185X100X65	210X120X750	250X170X100
