Description
Purposefully crafted for the construction industry, the device stands out with its unwavering newness.
Specifically designed for pulling tasks, it’s more than just your everyday hoist.
Weighing in at a mere 7 kg, it epitomizes lightweight efficiency.
Moreover, with a machinery test report at your disposal, our wire rope pulling hoist’s authenticity is indisputable. Overall, contact us today and invest in it.

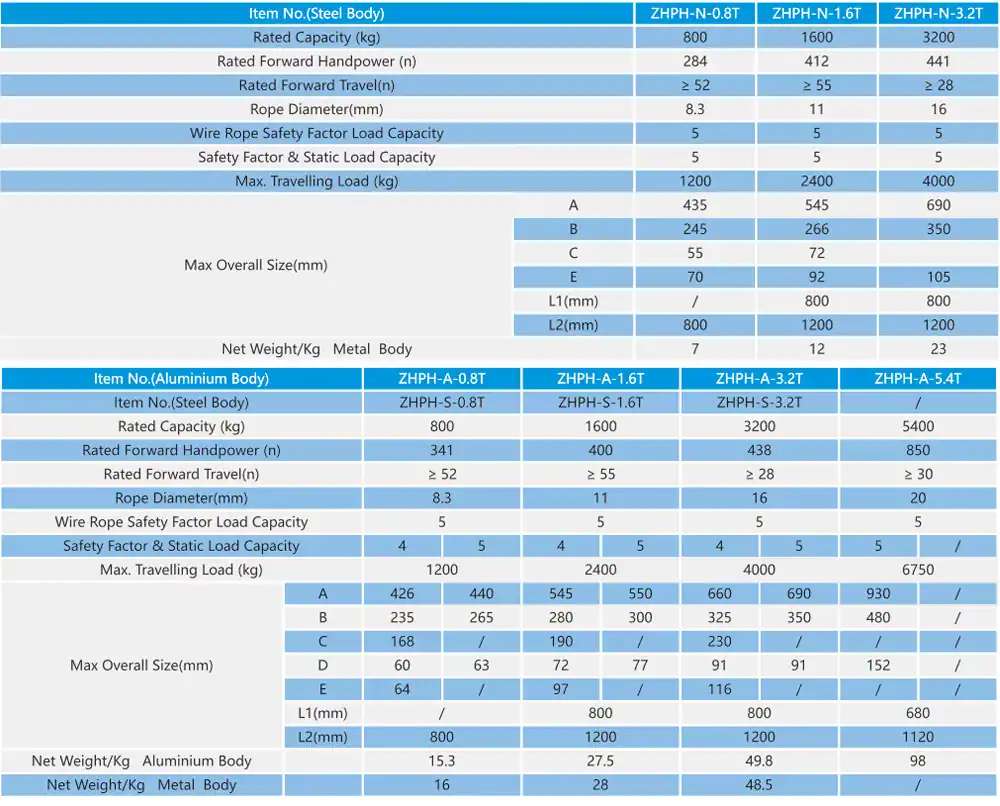

| Item No. (Steel Body) | ZHPH-N-O.8T | ZHPH-N-1.6T | ZHPH-N-3.2T | |
| Rated Capacity (kg) | 800 | 1 600 | 3200 | |
| Rated Forward Handpower (n) | 284 | 412 | 441 | |
| Rated Forward Travel(n) | ≥52 | ≥55 | ≥28 | |
| Rope Diameter(mm) | 8.3 | 11 | 16 | |
| Wire Rope Safety Factor Load Capacity | 5 | 5 | 5 | |
| Safety Factor & Static Load Capacity | 5 | 5 | 5 | |
| Max. Travelling Load (kg) | 1200 | 2400 | 4000 | |
| Max Overall Size(mm) | A | 435 | 545 | 690 |
| B | 245 | 266 | 350 | |
| C | 55 | 72 | ||
| E | 70 | 92 | 105 | |
| L1(mm) | / | 800 | 800 | |
| L2(mm) | 800 | 1200 | 1200 | |
| Net Weight/Kg Metal Body | 7 | 12 | 23 | |
| Item No.(Aluminium Body) | ZHPH-A-O.8T | ZHPH-A-1.6T | ZHPH-A-3.2T | ZHPH-A-5.4T | |||||
| Iltem No.(Steel Body) | ZHPH-S-0.8T | ZHPH-S-1.6T | ZHPH-S-3.2T | / | |||||
| Rated Capacity (kg) | 800 | 1600 | 3200 | 5400 | |||||
| Rated Forward Handpower (n) | 341 | 400 | 438 | 850 | |||||
| Rated Forward Travel(n) | ≥52 | ≥55 | ≥28 | ≥30 | |||||
| Rope Diameter(mm) | 8.3 | 11 | 16 | 20 | |||||
| Wire Rope Safety Factor Load Capacity | 5 | 5 | 5 | 5 | |||||
| Safety Factor & Static Load Capacity | 4 | 5 | 4 | 5 | 4 | 5 | 5 | / | |
| Max. Travelling Load (kg) | 1200 | 2400 | 4000 | 6750 | |||||
| Max Overall Size(mm) | A | 426 | 440 | 545 | 550 | 660 | 690 | 930 | / |
| B | 235 | 265 | 280 | 300 | 325 | 350 | 480 | / | |
| C | 168 | / | 190 | / | 230 | / | 152 | / | |
| D | 60 | 63 | 72 | 77 | 91 | 91 | / | / | |
| E | 64 | / | 97 | / | 116 | / | / | / | |
| L1(mm) | / | 800 | 800 | 680 | |||||
| L2(mm) | 800 | 1200 | 1200 | 1120 | |||||
| Net Weight/Kg Aluminium Body | 15.3 | 27.5 | 49.8 | 98 | |||||
| Net Weight/Kg Metal Body | 16 | 28 | 48.5 | / | |||||
