If you work around warehouses, construction sites, or big factories, you see lifting equipment almost every day. There are all sorts of machines and tools designed to help you move heavy stuff safely and easily. Understanding the different types of lifting equipment can help you choose the right one for your project.
What Are Lifting Equipment
Lifting equipment is any tool or machine that helps you move, raise, or lower heavy objects safely. These tools can be really big, like cranes, or small and simple, like shackles or slings.
If you ever need to lift something heavy at work or home, knowing the right lifting equipment for the job makes things much easier and safer.
Lifting Slings
Lifting slings are used to lift heavy loads, offering strength, flexibility, and a secure grip. The type you choose will affect the load’s safety and ease of movement.
Wire Rope Slings
Wire rope slings are made from several steel wires twisted together, which makes them strong and durable. You’ll see these most often in construction and heavy-duty lifting jobs where you need to handle really heavy materials.
Key Features:
- High strength for heavy loads
- Resistant to heat and cuts
- Flexible but sturdy
Chain Slings
Chain slings are built from metal links, giving them a high weight limit and making them perfect for rugged work environments. You can use them for lifting loads at awkward angles, and they can handle sharp edges better than many others.
Benefits:
- Can be used in hot conditions
- Adjustable for different lifts
- Long lifespan when properly cared for
Webbing Slings
Webbing slings are made from strong woven polyester or nylon. These slings are lightweight, flexible, and gentle on the load’s surface, which makes them great for lifting delicate or finished items that could be scratched by metal.
Key Details:
- Lightweight and easy to handle
- Won’t damage painted or smooth surfaces
- Good resistance to chemicals and moisture
Hoists
Hoists are machines that help you lift and lower heavy loads with less effort. They use either manual force, electricity, or pressurized air, and each works best for different jobs, weight limits, and environments.

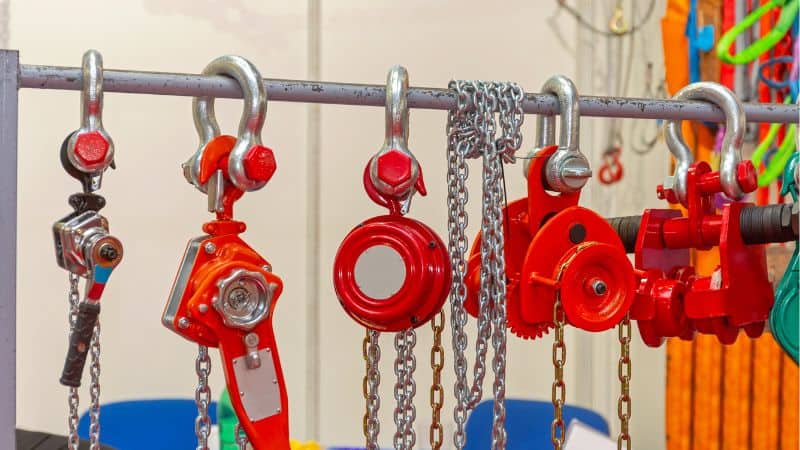

Manual Hoists
Manual hoists work without electricity or air. You use your hands to pull a chain, turn a wheel, or move a lever, which lifts the load. These are also called hand chain hoists or lever hoists.
Features:
- Mechanical Advantage: Use pulleys, gears, or chains to multiply the force applied by the operator.
- Portability: Typically lightweight and easy to move around.
- Cost-Effective: Generally less expensive compared to electric or pneumatic hoists.
- No Power Source: Do not require electricity or compressed air, making them suitable for remote locations.
Electric Hoists
Electric hoists do the lifting with a motor. All you have to do is press a button or use a remote. These come in different sizes and types, but most use either a chain or a wire rope to lift.
Features:
- Power Source: Require an electrical supply.
- Speed and Efficiency: Can lift and lower loads quickly and with less effort.
- Higher Capacity: Capable of handling heavier loads compared to manual hoists.
- Control Systems: Often come with advanced control systems for precise lifting and lowering.
Pneumatic Hoists
Pneumatic hoists, also called air hoists, use compressed air instead of electricity. The motor runs on air you supply from a compressor.
Features:
- Power Source: Require a compressed air supply.
- Safety: Often preferred in hazardous environments where sparks from electrical equipment could cause explosions.
- Durability: Can operate in dusty or wet conditions without the risk of electrical short circuits.
- Control: Offer smooth and precise control over lifting and lowering operations.
Cranes
You will find many types of cranes in construction and industrial work. Each kind does specific jobs, and knowing the differences helps you pick the best one.

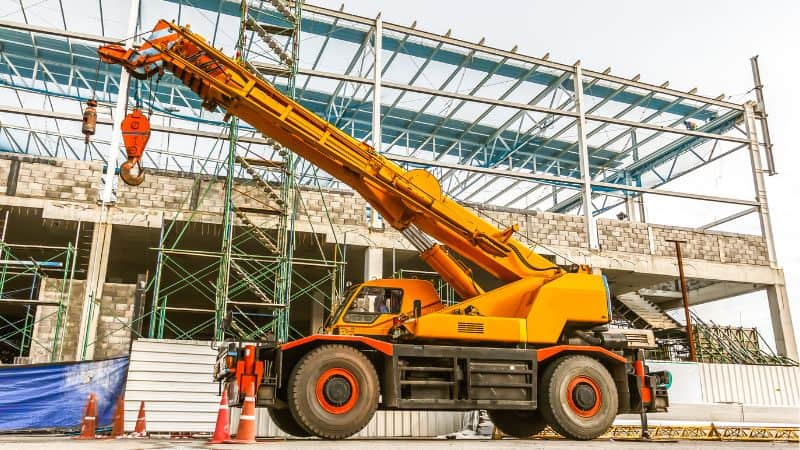

Mobile Cranes
Mobile cranes are mounted on vehicles and can be easily moved from one location to another. They are highly versatile and widely used in various construction projects.
Features:
- Mobility: Equipped with wheels or tracks, allowing them to move around construction sites easily.
- Versatility: Can be used in a variety of terrains and environments.
- Telescopic Boom: Many mobile cranes have a telescopic boom that can extend and retract, providing flexibility in lifting operations.
- Counterweights: Often have counterweights to maintain balance when lifting heavy loads.
Tower Cranes
Tower cranes are tall machines you see at major construction sites, usually for building skyscrapers or tall structures. They are fixed to the ground and can lift very heavy loads to great heights.
Features:
- Height: Can reach great heights, making them ideal for skyscraper construction.
- Lifting Capacity: Capable of lifting very heavy loads.
- Fixed Base: Mounted on a concrete base and often attached to the building structure for stability.
- Long Jib: The horizontal arm (jib) can be quite long, allowing for a wide reach.
Overhead Cranes
Overhead cranes are installed on elevated tracks or beams, typically in factories and warehouses. They are designed to move loads horizontally and vertically within a specific area.
Features:
- Track System: Operates on a fixed track system, usually mounted on the ceiling or elevated beams.
- Efficiency: Allows for precise movement and positioning of loads within a confined space.
- Safety: Reduces the risk of accidents by keeping heavy loads off the ground.
Gantry Cranes
Gantry cranes are similar to overhead cranes but have a different structure. They consist of a horizontal beam supported by two vertical legs, forming a gantry.
Features:
- Portability: Some gantry cranes are portable and can be moved to different locations.
- Flexibility: Can be used both indoors and outdoors.
- Customizable: Can be built to specific dimensions and lifting capacities.
Forklifts
Forklifts help you lift and move heavy loads in factories, warehouses, and stores. Each type has features for specific spaces, load sizes, and job requirements.

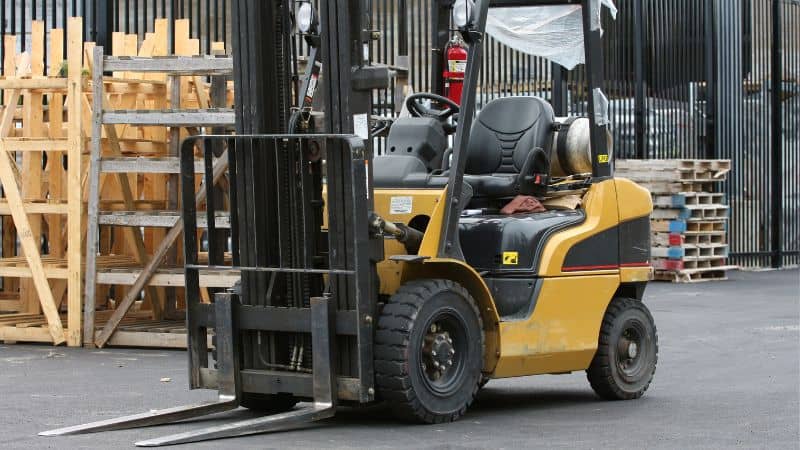

Counterbalance Forklifts
Counterbalance forklifts are what most people picture when someone says “forklift.” You use them to move and stack loads both inside and outside.
They have forks in the front for lifting pallets and don’t need extra arms or legs to balance the weight. The heavy weight at the back balances loads, which lets you pick up heavy items without tipping forward.
Reach Forklifts
Reach forklifts, sometimes called reach trucks, are made for high stacking in tight spaces. You often see them in big warehouse aisles where racks reach up toward the ceiling.
These forklifts have forks that extend or “reach” into shelves, so you can pick up items set far back.
Order Picker Forklifts
Order picker forklifts are designed for picking single items or cases directly from shelves. Instead of lifting a whole pallet, you ride up with the forks to grab what you need by hand.
This type works well for filling customer orders in big warehouses, especially if you need to pick from different heights. Order pickers can reach quite high, letting you select items from the top shelves without needing ladders.
Side Loader Forklifts
Side loader forklifts carry loads on the side, not the front. This makes them perfect for moving long, bulky items like pipes, wood, or steel beams.
You can drive right next to racks and load or unload without swinging out into the aisle. This is a big help in lumber yards or factories with narrow aisles. Side loaders usually have big, sturdy wheels for handling heavy stuff.
Winches
You use winches to pull or lift heavy loads by winding a cable or rope. They have different power sources and are designed for different jobs, from simple hand use to big industrial projects.

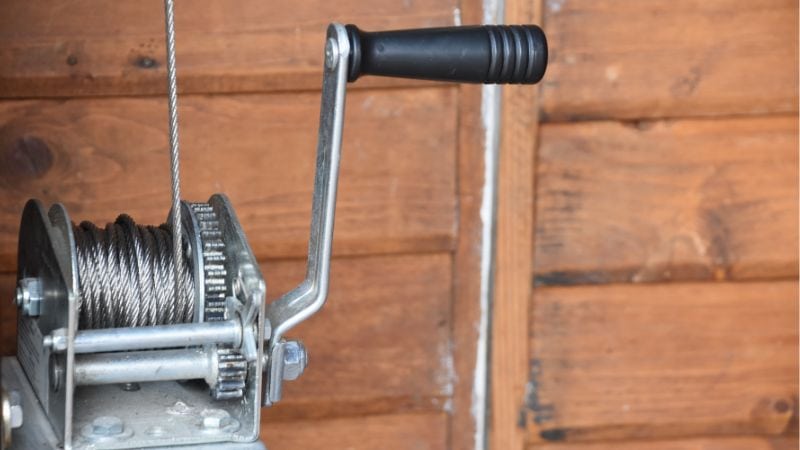

Manual Winches
Manual winches work by turning a handle or crank. You can use them when there’s no electricity or air power around. They’re a good choice for lighter loads that you can control by hand, like moving small boats or trailers.
Here’s a quick look at typical uses for manual winches:
- Boat trailers
- Off-road recovery
- Small construction projects
Pneumatic Winches
Pneumatic winches are powered by compressed air. You’ll see them in places where sparks could cause danger, like oil rigs or mining operations. Since these winches don’t use electricity, they can work safely in explosive atmospheres.
Typical uses for pneumatic winches include:
- Mining
- Oil and gas rigs
- Heavy-duty construction
Electric Winches
Electric winches run off a battery or plug directly into a power source. If you need to lift or pull heavy things with less effort, these are a popular choice. You’ll find them on tow trucks, at construction sites, and even mounted on some off-road vehicles.
Some common uses for electric winches are:
- Vehicle recovery
- Lifting building materials
- Industrial assembly lines
Jacks
You use jacks when you need to lift, support, or position heavy loads that can’t be moved by hand. There are simple jacks for cars and much larger ones for industrial jobs. Each kind of jack has its own strengths, and knowing the differences can help you choose what you need.

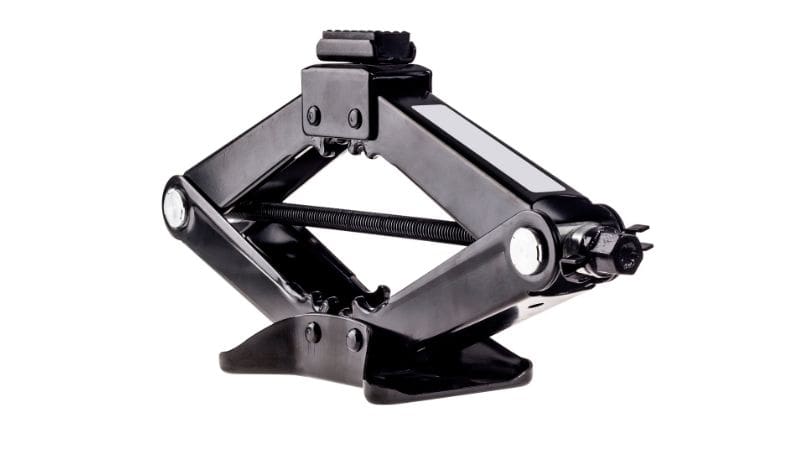

Scissor Jacks
Scissor jacks look like two metal arms crossed in an “X” shape. When you turn the handle, they open or close, which raises or lowers your load. This design gives them a stable base, even on uneven ground.
Pneumatic Jacks
Pneumatic jacks work differently because they use air pressure to lift things. You connect these jacks to an air compressor, and the air fills a bladder or cylinder. As air fills up, the jack gets taller and lifts what’s above it.
Hydraulic Jacks
Hydraulic jacks use oil and pistons to multiply force. When you pump the handle, it pushes oil through a small valve, and that pressure lifts heavy objects. These jacks can lift much more weight than most manual types.
Frequently Asked Questions
What tools do I need for lifting when I’m doing manual jobs?
If you’re lifting stuff by hand, try using lever hoists, pulleys, or even a simple dolly. Hand winches and lifting straps make it easier for one person to carry or move bulky items without straining.
What sorts of rigging doohickeys are there for lifting?
There’s a whole bunch, from shackles and eye bolts to turnbuckles and hooks. You’ll also run into lifting chains, wire ropes, and slings. Each piece connects loads to the main lifting gear and helps keep everything steady.
