When it comes to lifting and securing heavy objects, the eye bolt is an essential piece of hardware that often goes unnoticed but plays a crucial role.
If you want to know what eye bolts are, where you might use them, or how to pick the right kind, you’re in the right spot. This guide will walk you through what makes an eye bolt so handy and how you can use one without any hassle.
What Is an Eye Bolt?

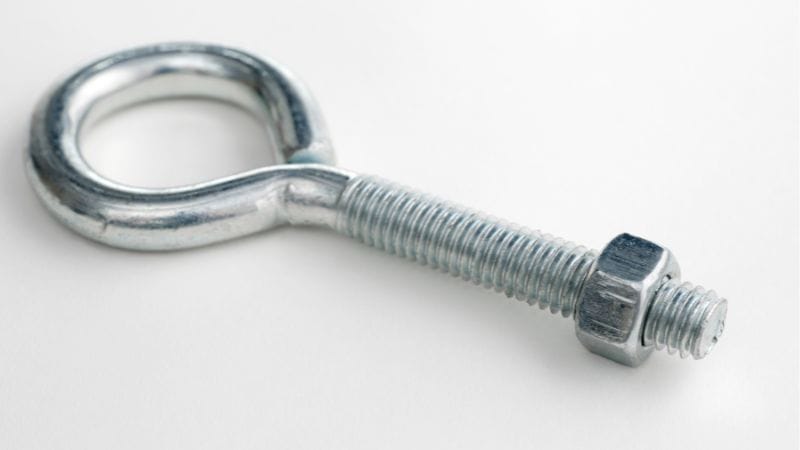

An eye bolt is a type of fastener designed with a loop or “eye” at one end and threaded shaft at the other.
It is commonly used to secure ropes, cables, chains, or other fittings for lifting, hanging, or securing loads.
Eye bolts are widely utilized in various industries, including construction, marine, manufacturing, and transportation, due to their strength and versatility.

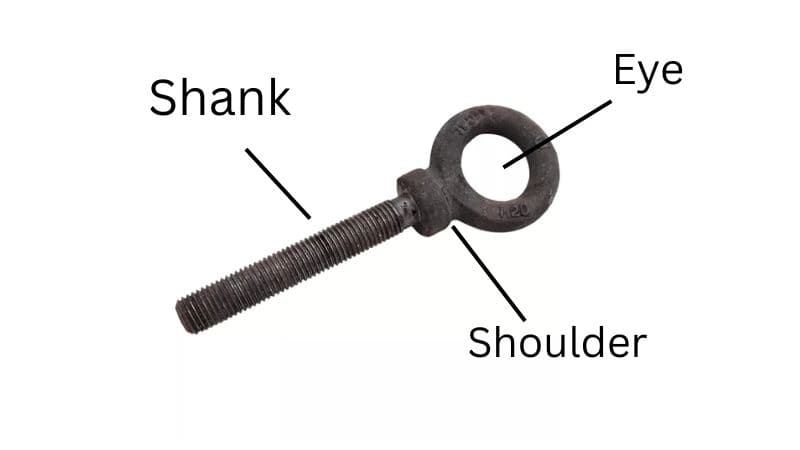

Parts of Eye Bolts
Eye (Loop)
The circular loop at the top of the eye bolt. This part is designed to hold a hook, rope, or cable, providing a secure attachment point.
Shoulder
Located directly below the eye, the shoulder is a raised section that provides additional support.
Shank
The cylindrical portion that extends from the shoulder to the base. It can be fully or partially threaded and is designed to be screwed into the material or fastened with a nut.
Typical Materials of Eye Bolts
Most eye bolts are made from strong metals so they won’t break under heavy weight. The most common materials include:
| Material | Features | Common Uses |
| Steel | Strong, affordable, for heavy-duty jobs. | Construction, industry |
| Stainless Steel | Resists rust and corrosion, good for outdoor or wet places. | Boats, marine use |
| Brass | Good for light loads, resists rust, looks nice. | Decorative, indoors |
- Steel eye bolts often have zinc or galvanizing to stop rusting.
- Stainless steel works best if you need something tough in the rain or near saltwater.
- Brass eye bolts are more for looks or light-duty tasks.
That way you can pick the right type for strength, weather, or even style depending on what you need.
Eye Bolt Standards and Certifications
When you pick out an eye bolt, you need to know it meets the right standards. Standards help make sure each eye bolt is made for safety, strength, and quality.
Some common certifications and standards include:
- ASTM A193 Grade B7: Used for strong, threaded bolts, often needed for heavy lifting or tough situations. Eye bolts made to this standard are certified to perform in demanding environments.
- ASTM A193 Grade B8: Similar to B7, but for applications where corrosion resistance is important, like outdoors or around water.
It’s also a good idea to check if your eye bolt comes with a 3.1 certification. This certification shows that each bolt has been tested and meets quality requirements.
Types of Eye Bolts
Eye bolts come in different shapes and strengths for specific jobs. Some are better for heavy lifting, while others work best for lighter loads or wood surfaces.
Forged Eye Bolts
Forged eye bolts are made by shaping metal under heat and pressure, making them extremely strong and durable.
You can use them for lifting, rigging, and pulling heavy objects. They handle tough conditions and can carry more weight compared to other eye bolt types.
Bent Eye Bolts
Bent eye bolts are made by bending a piece of steel into a loop at one end, which creates the eye.
The process leaves a slight gap at the eye, which makes them less ideal for lifting heavy weights. These eye bolts work best for light loads such as securing cables, wires, or ropes.
Shoulder Eye Bolts
Shoulder eye bolts have a wide, flat shoulder under the eye, which helps distribute weight when the bolt is loaded at an angle. This shoulder keeps the bolt stable and reduces bending or breaking under side loads.
You can use shoulder eye bolts for both straight and angled pulls, making them a popular choice for many rigging and lifting needs. They’re made from forged steel for extra strength and safety.
Non-Shoulder Eye Bolts
Non-shoulder eye bolts, sometimes called plain pattern bolts, don’t have the flat shoulder under the eye. These are best used for perfectly vertical loads only. Without the shoulder, the bolt can bend or fail if the load pulls from the side.
Because of this, non-shoulder eye bolts are common in light lifting and tie-down jobs where the force stays in line with the bolt. Trying to use them for angled or heavy loads could cause problems.
Lag Eye Bolts
Lag eye bolts are made to screw directly into wood. You don’t need nuts or washers to use them, which makes installation easy and fast. These bolts have threads like a wood screw and an eye at one end.
Machinery Eye Bolts
Machinery eye bolts are built for lifting heavy equipment. They’re designed to screw into tapped holes on machines and are often used with a shoulder for support. That shoulder lets you pull at an angle without bending or breaking the bolt.
Common Uses for Eye Bolts
Eye bolts are sturdy fasteners with a looped end, and you see them used in a lot of heavy-duty and everyday tasks. They make certain jobs safer and more secure by creating strong points to attach ropes, hooks, or cables.
Automotive and Industrial
In automotive workshops and industrial settings, eye bolts are used to secure heavy machinery and equipment. They can also be used for temporary anchoring during maintenance and repair operations.
Home and DIY Projects
For home improvement projects, eye bolts can be used to hang heavy items such as chandeliers, ceiling fans, or large mirrors. They provide a secure and reliable attachment point, ensuring that these items are safely suspended.
Marine and Boating
In marine applications, eye bolts are used to secure ropes and lines to boats and other marine equipment. They are often made from stainless steel or other corrosion-resistant materials to withstand harsh marine environments.
Lifting Applications
Eye bolts play a key role in lifting and rigging, especially on job sites, ships, or warehouses. When you need to move heavy objects, you can screw an eye bolt into place and attach a hook, sling, or chain through the loop. This setup lets you lift items straight up without them slipping or tipping.
How to Properly Install an Eye Bolt
You’ll need the right tools and some basic steps to get a secure fit when installing an eye bolt. Making sure you understand the key safety rules is just as important as getting the bolt in place.
Select the Right Eye Bolt
Choose an eye bolt that matches the required load capacity and is suitable for the intended use, whether it’s for angular loads (shoulder eye bolts), vertical loads (straight eye bolts), or dynamic applications (swivel eye bolts).
Inspect the Mounting Surface
Ensure the surface is flat, clean, and strong enough to support the load without deforming.
Drill and Tap (If Applicable)
For wood or metal surfaces, drill a hole matching the bolt’s diameter and thread, then tap the hole to create internal threads for a secure fit. For concrete, use rated expansion or chemical anchors appropriate for eye bolts.
Install the Eye Bolt
Hand-tighten the bolt until it’s fully seated. Use a wrench if necessary, but avoid overtightening to prevent thread damage. Ensure shoulder bolts sit flush with the mounting surface and position the eye to face the direction of the applied force.
Test the Connection
Before applying full load, perform a load test if required by standards. Apply light tension to check alignment and stability, and inspect for rotation, movement, or any signs of loosening.
Use Thread Locker (Optional)
For added security, especially in high-stress environments, you can apply thread locker to the threads of the eye bolt to prevent loosening due to vibration or other factors.
Eye Bolt Maintenance Tips
Taking care of your eye bolts keeps them safe and working longer. Good maintenance protects against wear, damage, and unsafe lifting.
Routine Inspections
You should check your eye bolts before each use and as part of your regular maintenance schedule. Look for signs of damage like cracks, bending, or worn threads. If you spot rust, pitting, or any distortion, it’s usually best to replace the bolt.
Inspection Checklist:
- Threads are clean and not stripped
- No sharp bends or broken areas
- The eye is not stretched or misshaped
Also, make sure to check the receiving hole. Both the bolt and hole need to be clean and free of dirt. According to experts, you should never use an old or damaged eye bolt, as it may fail under load. Only use tools for lifting if they are rated for the required weight.
Preventing Corrosion
Corrosion can weaken eye bolts and cause them to break, sometimes suddenly. To prevent rust, store eye bolts in a dry area and clean them regularly.
Apply anti-corrosive treatments when needed, especially if the bolts are used outside or in damp places.
Check the surface after every use. Wipe off moisture or chemicals right away. This also helps you spot any rust that might be starting.
If you use eye bolts around salty water or harsh chemicals, pick bolts that have protective coatings or are made from stainless steel. These materials last longer and stand up better to corrosive conditions.
Conclusion
Eye bolts are vital for lifting and securing loads. Choose the right type, install properly, and maintain regularly to ensure safety and reliability.
