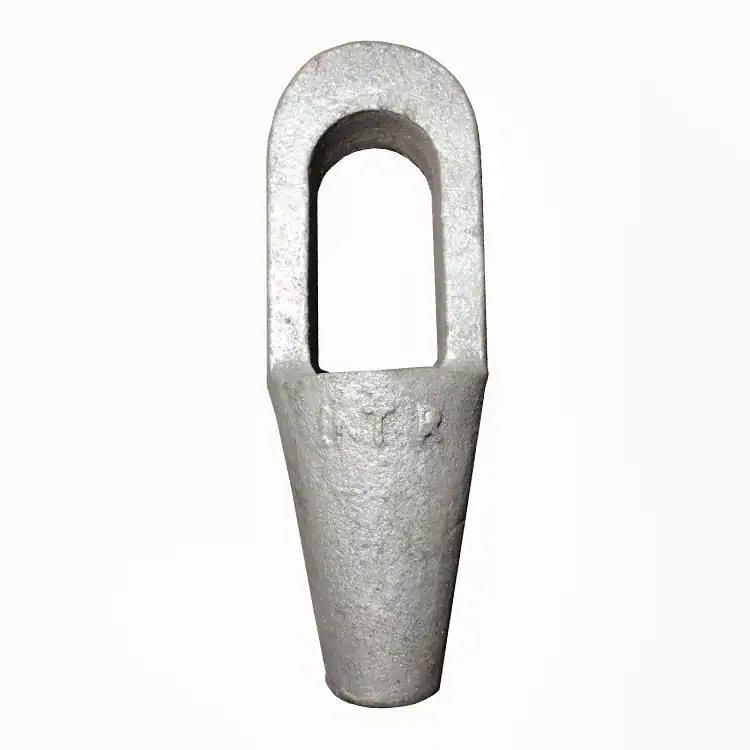

G417 Closed Spelter Socket
$3.00
Heavy-duty closed spelter socket with a high load capacity of up to 1005 tons for wire rope termination, suitable for various industries and made of durable materials.
Description
| Item No. | Ultimate load | Normal size
(dia of rope) |
A | B | C | D | F | G | H | J | K | L | Weight | |
| tons | in. | mm | mm | kg | ||||||||||
| ZHSS417-1 | 4.5 | 1/4 | 6-7 | 116 | 12.7 | 39.6 | 22.4 | 9.65 | 17.5 | 39.6 | 57.2 | 12.7 | 46 | 23 |
| ZHSS417-2 | 12 | 5/16 – 3/8 | 8-9 | 125 | 15.8 | 42.9 | 24.6 | 12.7 | 20.6 | 42.9 | 57.2 | 17.5 | 52.5 | 0.34 |
| ZHSS417-3 | 20 | 7/16 – 1/2 | 11-12 | 140 | 17.5 | 51 | 29.5 | 14.2 | 23.9 | 51 | 63.5 | 22.4 | 58.7 | 0.68 |
| ZHSS417-4 | 30.8 | 9/16 – 5/8 | 14-16 | 162 | 20.6 | 67 | 35.8 | 17.5 | 30.2 | 67 | 76.2 | 25.4 | 65 | 1.13 |
| ZHSS417-5 | 43.5 | 3/4 | 18 | 194 | 26.9 | 76.2 | 42.2 | 22.4 | 33.3 | 70 | 89 | 31.8 | 77.5 | 1.92 |
| ZHSS417-6 | 65.3 | 7/8 | 20-22 | 226 | 33.3 | 92 | 49.3 | 25.4 | 38.1 | 82.5 | 102 | 38.1 | 90.5 | 3.28 |
| ZHSS417-7 | 81.6 | 1 | 24-26 | 254 | 36.6 | 105 | 58.5 | 28.7 | 44.5 | 95.5 | 114 | 44.5 | 103 | 4.76 |
| ZHSS417-8 | 100 | 1 1/8 | 26-30 | 283 | 39.6 | 114 | 65 | 31.8 | 51 | 105 | 127 | 51 | 116 | 6.46 |
| ZHSS417-9 | 136 | 1-1/4 – 1 3/8 | 32-35 | 309 | 41.4 | 127 | 71 | 38.1 | 58.5 | 119 | 138 | 56.5 | 129 | 8.95 |
| ZHSS417-10 | 170 | 1-1/2 | 38 | 355 | 49.3 | 137 | 81 | 41.4 | 70.5 | 132 | 151 | 62.5 | 155 | 13.2 |
| ZHSS417-11 | 188 | 1-5/8 | 40-42 | 390 | 54 | 146 | 82.5 | 44.5 | 76.2 | 140 | 165 | 70 | 171 | 16.3 |
| ZHSS417-12 | 268 | 1-3/4 – 1-7/8 | 44-48 | 445 | 55.5 | 171 | 95.5 | 51 | 79.5 | 162 | 191 | 76.2 | 198 | 26 |
| ZHSS417-13 | 309 | 2 – 2-1/8 | 5054 | 505 | 62 | 194 | 111 | 57.2 | 95.5 | 187 | 216 | 82.5 | 224 | 35.8 |
| ZHSS417-14 | 360 | 2-1/4 – 2-3/8 | 56-60 | 546 | 70 | 216 | 127 | 66.8 | 105 | 210 | 229 | 92 | 254 | 47.6 |
| ZHSS417-15 | 424 | 2-1/2 – 2-5/8 | 64-67 | 597 | 79.5 | 241 | 140 | 74.5 | 114 | 235 | 248 | 102 | 270 | 64 |
| ZHSS417-16 | 549 | 2-3/4 – 2-7/8 | 70-73 | 645 | 79.5 | 273 | 159 | 79.5 | 124 | 259 | 279 | 124 | 286 | 100 |
| ZHSS417-17 | 656 | 3 – 3-1/8 | 75-80 | 689 | 85.6 | 292 | 171 | 86 | 133 | 292 | 305 | 133 | 298 | 125 |
| ZHSS417-18 | 750 | 3-1/4 – 3-3/8 | 82-86 | 743 | 102 | 311 | 184 | 92 | 146 | 311 | 330 | 146 | 311 | 142 |
| ZHSS417-19 | 820 | 3-1/2 – 3-5/8 | 88-92 | 787 | 102 | 330 | 197 | 98.5 | 165 | 330 | 356 | 159 | 330 | 181 |
| ZHSS417-20 | 1005 | 3-3/4 – 4 | 94-102 | 845 | 108 | 362 | 216 | 108 | 184 | 362 | 381 | 178 | 356 | 246 |
- The G417 closed spelter socket is a heavy-duty and reliable wire rope termination product.
- It is designed for different sizes of wire ropes ranging from 6-7 mm to 94-102 mm and has an ultimate load capacity from 4.5 tons to 1005 tons.
- Made of high-quality materials, this socket is durable and can withstand heavy loads.
- It features a closed design to ensure the rope stays securely in place and is suitable for various applications in industries such as construction, mining, and marine.
