18X7+IWS Lifting Purpose Wire Rope
$5.00
Heavy-duty 18X7+IWS lifting purpose wire rope with metal core and fiber core and high nominal tensile strength for heavy-duty lifting. Available in various diameters and has various maximum breaking strengths.
Product Description

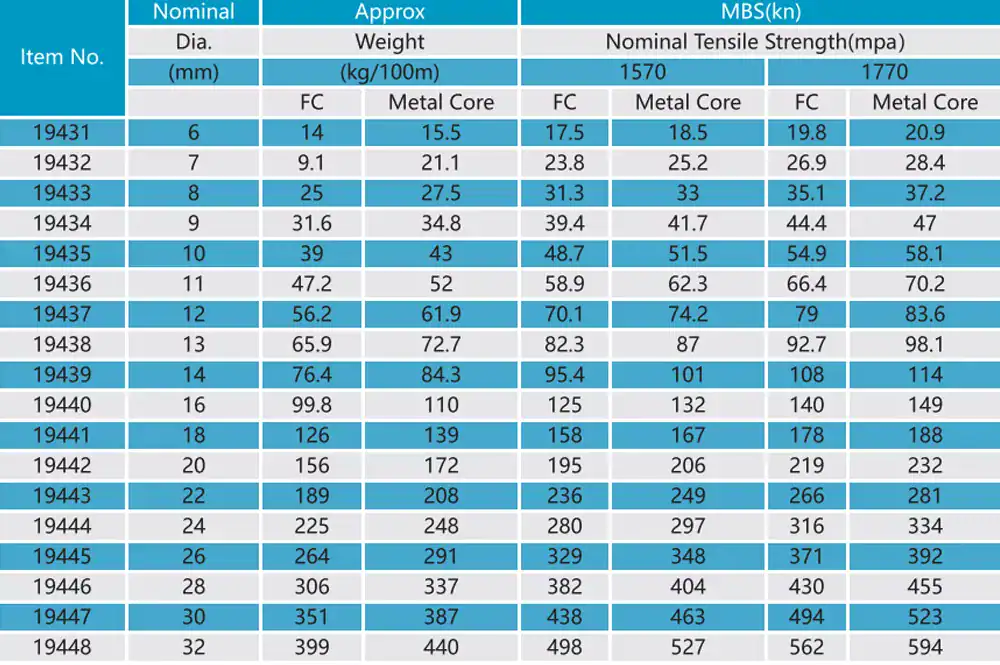

| Item No. | Nominal | Approx | MBS(kn) | ||||
| Dia. | Weight | Nominal Tensile Strength(mpa) | |||||
| (mm) | (kg/100m) | 1570 | 1770 | ||||
| FC | Metal Core | FC | Metal Core | FC | Metal Core | ||
| 19431 | 6 | 14 | 15.5 | 17.5 | 18.5 | 19.8 | 20.9 |
| 19432 | 7 | 9.1 | 21.1 | 23.8 | 25.2 | 26.9 | 28.4 |
| 19433 | 8 | 25 | 27.5 | 31.3 | 33 | 35.1 | 37.2 |
| 19434 | 9 | 31.6 | 34.8 | 39.4 | 41.7 | 44.4 | 47 |
| 19435 | 10 | 39 | 43 | 48.7 | 51.5 | 54.9 | 58.1 |
| 19436 | 11 | 47.2 | 52 | 58.9 | 62.3， | 66.4 | 70.2 |
| 19437 | 12 | 56.2 | 61.9 | 70.1 | 74.2 | 79 | 83.6 |
| 19438 | 13 | 65.9 | 72.7 | 82.3 | 87 | 92.7 | 98.1 |
| 19439 | 14 | 76.4 | 84.3 | 95.4 | 101 | 108 | 114 |
| 19440 | 16 | 99.8 | 110 | 125 | 132 | 140 | 149 |
| 19441 | 18 | 126 | 139 | 158 | 167 | 178 | 188 |
| 19442 | 20 | 156 | 172 | 195 | 206 | 219 | 232 |
| 19443 | 22 | 189 | 208 | 236 | 249 | 266 | 281 |
| 19444 | 24 | 225 | 248 | 280 | 297 | 316 | 334 |
| 19445 | 26 | 264 | 291 | 329 | 348 | 371 | 392 |
| 19446 | 28 | 306 | 337 | 382 | 404 | 430 | 455 |
| 19447 | 30 | 351 | 387 | 438 | 463 | 494 | 523 |
| 19448 | 32 | 399 | 440 | 498 | 527 | 562 | 594 |
- The 18X7+IWS lifting purpose wire rope is a heavy-duty wire rope designed for lifting purposes.
- It has a metal core and a fiber core and a high nominal tensile strength of 1570 or 1770 mpa.
- It comes in various diameters of 6-32 mm and has a wide range of maximum breaking strengths (MBS) to suit different lifting needs.
- This rope comes in different weights of 9.1-440 kg.
- This wire rope is durable, reliable, and suitable for heavy lifting applications in industries such as construction, mining, and marine.
