36X7+FC/36X7+IWS Lifting Purpose Steel Wire Rope

$5.00

Heavy-duty 36X7+FC/36X7+IWS steel wire rope for lifting purposes. Available in different sizes with high MBS and nominal tensile strength of 1570 mpa and 1770 mpa.

SKU: 36X7+FC / 36X7+IWS Category:

Product Description

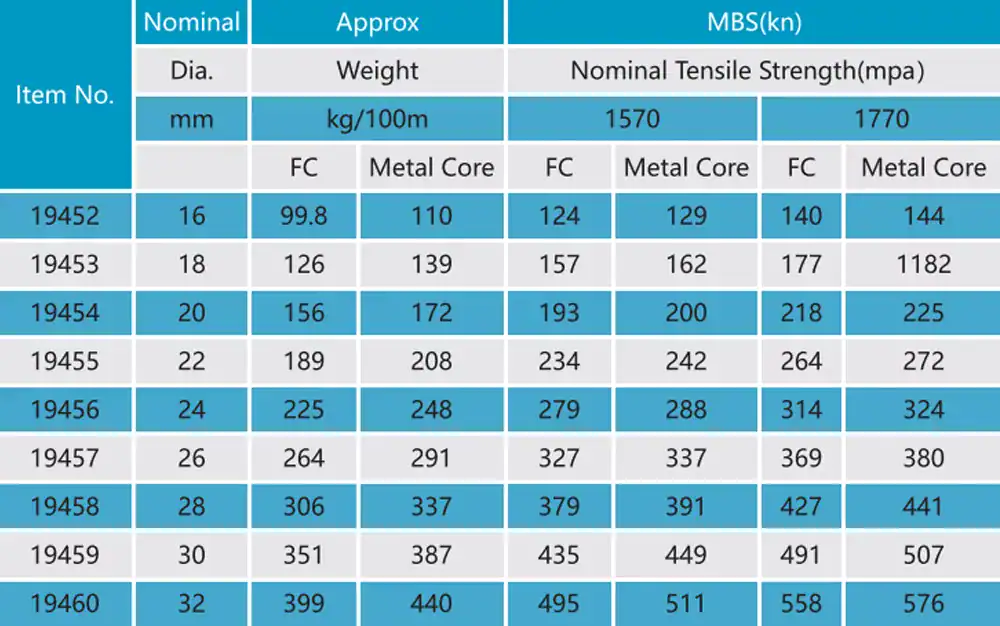

Item No. Nominal Approx MBS(kn)
Dia. Weight Nominal Tensile Strength(mpa)
(mm) (kg/100m) 1570 1770
FC Metal Core FC Metal Core FC Metal Core
19452 16 99.8 110 124 129 140 144
19453 18 126 139 157 162 177 1182
19454 20 156 172 193 200 218 225
19455 22 189 208 234 242 264 272
19456 24 225 248 279 288 314 324
19457 26 264 291 327 337 369 380
19458 28 306 337 379 391 427 441
19459 30 351 387 435 449 491 507
19460 32 399 440 495 511 558 576
  • The 36X7+FC/36X7+IWS lifting-purpose steel wire rope is a high-quality and heavy-duty product designed for lifting purposes.
  • It is made of strong and durable materials with a nominal tensile strength of 1570 mpa and 1770 mpa.
  • This rope features two cores, including a fiber core and a metal core, for meeting various lifting needs.
  • This steel wire rope is available in various sizes of 16-32 mm with different weights of 99.8-399 kg for fiber core rope and 110-440 kg for metal core rope and various MBS (minimum breaking strength) to suit different lifting needs.
