6X19+IWS Commercial Type Wire Rope
$5.00
Dive into a world of unparalleled strength with Grandlifting’s 6×19 wire rope, crafted from carbon steel 72A, suited for fencing, cold heading steel, and more.
Product Description

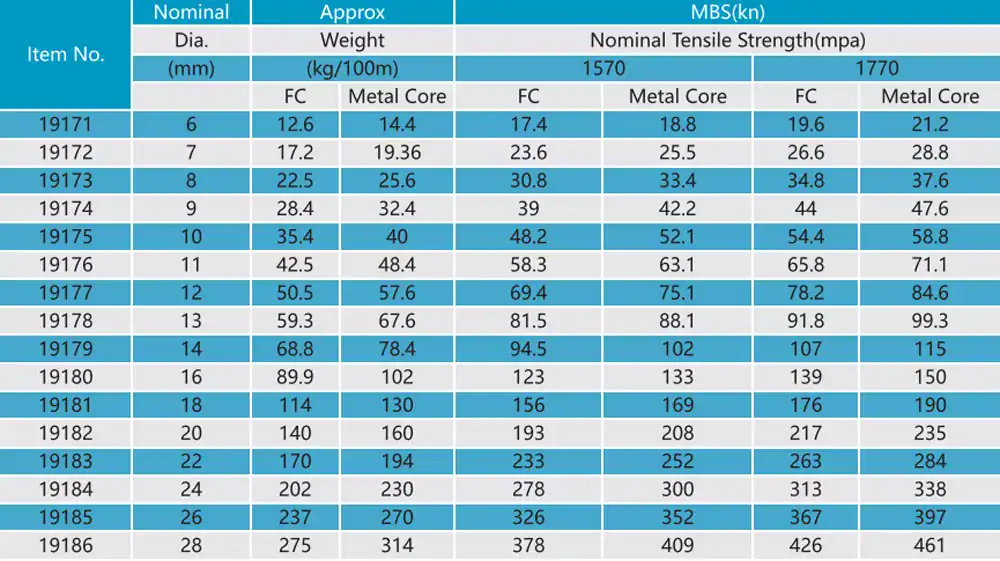

| Item No. | Nominal | Approx | MBS(kn) | ||||
| Dia. | Weight | Nominal Tensile Strength(mpa) | |||||
| (mm) | (kg/100m) | 1570 | 1770 | ||||
| FC | Metal Core | FC | Metal Core | FC | Metal Core | ||
| 19171 | 6 | 12.6 | 14.4 | 17 .4 | 18.8 | 19.6 | 21.2 |
| 19172 | 7 | 17.2 | 19.36 | 23.6 | 25.5 | 26.6 | 28.8 |
| 19173 | 8 | 22.5 | 25.6 | 30.8 | 33.4 | 34.8 | 37.6 |
| 19174 | 9 | 28.4 | 32.4 | 39 | 42.2 | 44 | 47.6 |
| 19175 | 10 | 35.4 | 40 | 48.2 | 52.1 | 54.4 | 58.8 |
| 19176 | 11 | 42.5 | 48.4 | 58.3 | 63.1 | 65.8 | 71.1 |
| 19177 | 12 | 50.5 | 57.6 | 69.4 | 75.1 | 78.2 | 84.6 |
| 19178 | 13 | 59.3 | 67.6 | 81.5 | 88.1 | 91.8 | 99.3 |
| 19179 | 14 | 68.8 | 78.4 | 94.5 | 102 | 107 | 115 |
| 19180 | 16 | 89.9 | 102 | 123 | 133 | 139 | 150 |
| 19181 | 18 | 114 | 130 | 156 | 169 | 176 | 190 |
| 19182 | 20 | 140 | 160 | 193 | 208 | 217 | 235 |
| 19183 | 22 | 170 | 194 | 233 | 252 | 263 | 284 |
| 19184 | 24 | 202 | 230 | 278 | 300 | 313 | 338 |
| 19185 | 26 | 237 | 270 | 326 | 352 | 367 | 397 |
| 19186 | 28 | 275 | 314 | 378 | 409 | 426 | 461 |
Constructed from the rugged carbon steel 72A, this 6×19 wire rope embodies durability and resilience. Its versatile diameter, ranging from 2-60mm, ensures adaptability for diverse applications.
The impressive Nominal T/S values, spanning from 1470 to 1870 N/mm2, vouch for its formidable tension strength.
Adhering to the AiSi standard, the wire rope shines in fencing applications and is optimized for cold-heading steel tasks.
Additionally, our on-demand cutting service perfectly aligns with your project’s specifications. Thus, contact us today and invest in it.
